DC Form Flipper

Overview

DC.FormFlipper is a COM based component that allows you to support Eastern languages. It supports right-to-left alignment and orientation by flipping the form horizontally 180 degrees.

DC.FormFlipper may be used with any developing language that supports COM based applications like Visual Basic, Visual C++, Borland C++, Delphi and others.

EgyFirst has done a lot of work for you. No need to waste time designing your form again to support multi-languages and Eastern language applications. You design one form and we design the other by flipping it for you.

Features

If you develop multi-language applications or eastern language applications, you must get DC.FormFlipper.

Only one line needs to be added in your Form_Load event and we will flip the form with all its controls for you.

Additionally, you can define alignment (Right 2 Left or Left 2 Right).

Note: It is recommended to use DC.FormTranslator with DC.FormFlipper.

Example:

Dim FF as DynamicComponents.FormFlipper()

FF.FlipForm(Me, True) ' Flip form, so it is right 2 left orientation

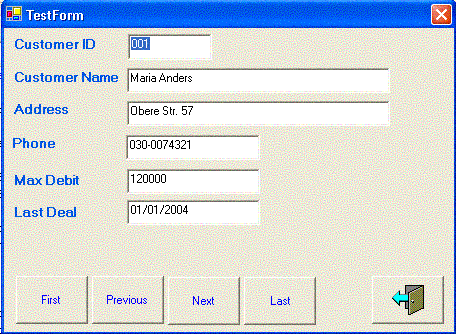

The first image shows the original form:

original form

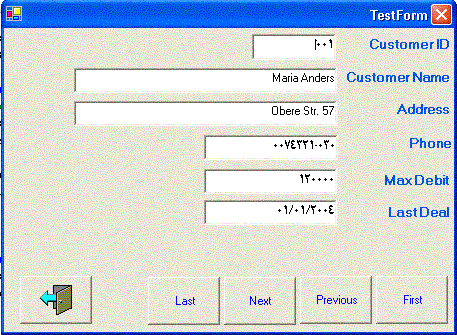

The second image shows form after flipping it horizontally 180 degrees:

flipped form

System Requirements

DC.FormFlipper runs as a COM class for Developing with Visual Basic.NET under Microsoft Windows 98/NT/2000 or Windows XP.

Installing DC.FormFlipper

The DC.FormFlipper setup program will automatically register the DC_FormFlipper10.dll file on your system.

There is no need to manually run RegSvr32.exe on your development system.

Including DC.FormFlipper

To include DC.FormFlipper in your project:

  1. From the Project menu select Add Reference.
  2. Click Browse button to locate your DC_FormFlipper10.DLL file which by default is located in c:\windows\system32. Now the specific DLL is included in your references.

Deploying DC.FormFlipper

The only file that needs to be distributed with DC.FormFlipper COM applications is DC_FormFlipper10.dll.

This file should be copied to the WinSystem directory which by default is C:\Windows\System32.

How to Use

FlipForm

We support eastern languages like Arabic, Chinese, and so on. So we support right-to-left alignment and orientation by rotating the form horizontally 180 degrees.

Syntax:

Function FlipForm(ByRef dm_Form As System.Windows.Forms.Form, ByVal Right2Left As Boolean)

Example:

FF.FlipForm(Me, True) ' Flip form, so it is right 2 left now

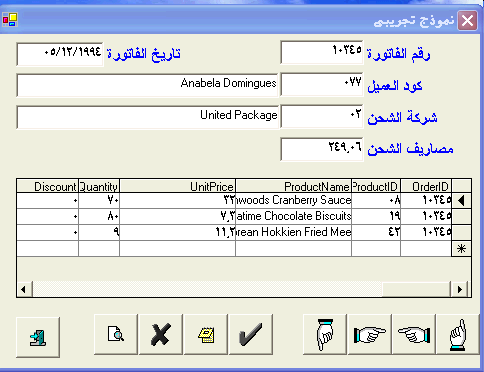

flipped form

Note: It is recommended to use DC.FormTranslator with DC.FormFlipper.

Tutorial

This tutorial describes most of the features supported by DC.FormFlipper.

You can also refer to the project example which is installed by default into C:\Program Files\Dynamic Components\Form Flipper\Tutorial.

Dim FF As New DynamicComponents.FormFlipper()

Dim CN As New ADODB.Connection()

Dim oCust As New ADODB.Recordset()

Dim oAccess As New Access.Application()

Dim DAO_DBEngine As New DAO.DBEngine()

Private Sub TestForm_Load(ByVal eventSender As System.Object, ByVal eventArgs As System.EventArgs) Handles MyBase.Load

  ' Establish DSN

  oAccess.DBEngine.RegisterDatabase("DCDM_Nwind", "Microsoft Access Driver (*.mdb)", True, "DBQ=" & VB6.GetPath & "\Nwind.mdb")

  CN.Open("DSN=DCDM_NWind")

  oCust.Open("Customers", CN, oCust.CursorType.adOpenKeyset, oCust.LockType.adLockOptimistic)

  PopulateDate()

  FF.FlipForm(Me, True) ' Flip form, so it is right 2 left

End Sub
